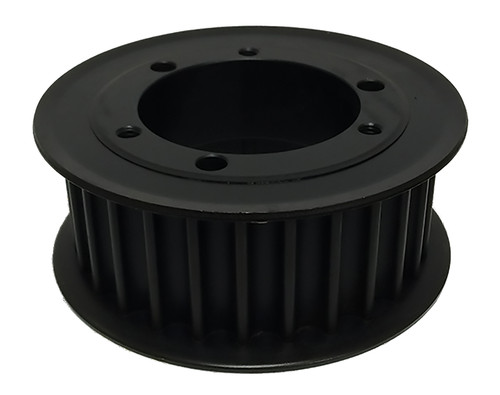

F34-14M40-SK, Timing Pulley

F34-14M40-SK - Ductile Iron Powerhouse®HTD® Pulleys

Product Details for F34-14M40-SK

Comparable to: F34-14M40-SK, F34-14MGT-40-

F34-14M40-SK, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F34-14M40-SK Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number F34-14M40-SK
Teeth 34
Tooth Style HTD 14mm
For Belt Width (mm) 40.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.965
Outside Diameter (in) 5.855
Flange Diameter (in) 6.465
Face Width (in) 2.130
Overall Length (in) 2.130
Hub Diameter (in) 7.100
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
Weight (lb) 7.10
Part Number Cross Reference F34-14M40-SK, F34-14MGT-40-
