F35-14MX37-SK, Timing Pulley

F35-14MX37-SK - Ductile Iron Powerhouse® MX Pulleys

Product Details for F35-14MX37-SK

Comparable to: F35-14MX37-SK, F14M-35S-

Click to Enlarge

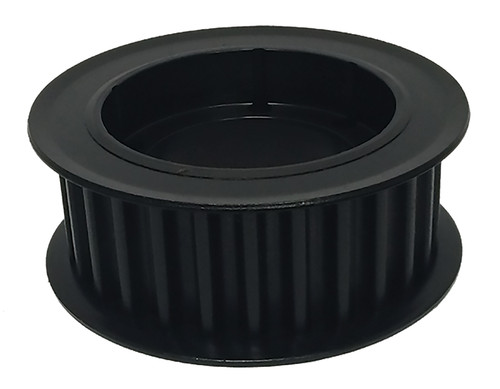

F35-14MX37-SK, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F35-14MX37-SK Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number F35-14MX37-SK
Teeth 35
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 6.141
Outside Diameter (in) 6.031
Flange Diameter (in) 6.816
Face Width (in) 1.690
Overall Length (in) 2.000
Hub Diameter (in) 8.300
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
Weight (lb) 8.30
Part Number Cross Reference F35-14MX37-SK, F14M-35S-
