F36-14MX20-SF, Timing Pulley

F36-14MX20-SF - Ductile Iron or Cast Iron Powerhouse® MX Pulleys

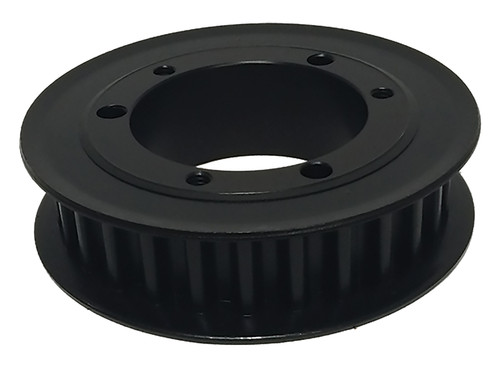

F36-14MX20-SF

F36-14MX20-SF - Ductile Iron or Cast Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

F36-14MX20-SF, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F36-14MX20-SF to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F36-14MX20-SF
Teeth 36
Tooth Style 14MX
For Belt Width (mm) 20.00
Type AF-1
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 6.316
Outside Diameter (in) 6.206
Flange Diameter (in) 6.816
Face Width (in) 1.359
Overall Length (in) 1.750
Hub Diameter (in) 7.900
Min. Bore (in) 0.5
Unit System Inch
Bushing SF
P.D. (mm) 160.00
O.D. (mm) 157.60
A (in) 4.750
C (in) 1.040
D (in) 1.250
F (in) 1.36
M (in) 0.11
MOQ 1
Weight (lb) 7.29
Part Number Cross Reference F14M-36S-20, 36G-14M-20-SF AXIAL FAN SPROCKET/IDLER, 20337489, F14MX-36S-20 SF FIN FAN, F36-14MX20-SF, 482215, F36-14MX20-SF
