F36-14MX37-SF, Timing Pulley

F36-14MX37-SF - Ductile Iron Powerhouse® MX Pulleys

Product Details for F36-14MX37-SF

Comparable to: F36-14MX37-SF, F14M-36S-

Click to Enlarge

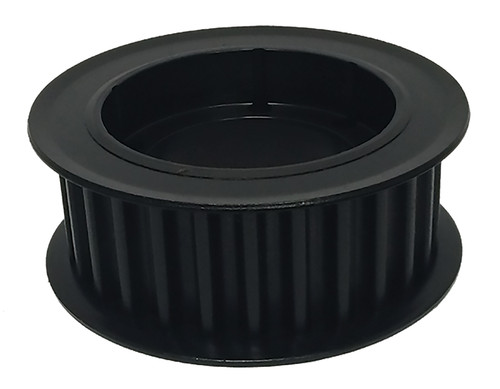

F36-14MX37-SF, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F36-14MX37-SF Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number F36-14MX37-SF
Teeth 36
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SF
Pitch Diameter (in) 6.315
Outside Diameter (in) 6.206
Flange Diameter (in) 6.816
Face Width (in) 1.690
Overall Length (in) 2.000
Hub Diameter (in) 8.800
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
Max. Bore (in) 2.9375
Weight (lb) 9.07
Part Number Cross Reference F36-14MX37-SF, F14M-36S-
