F38-14M55-SF, Timing Pulley

F38-14M55-SF - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys

F38-14M55-SF

F38-14M55-SF - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

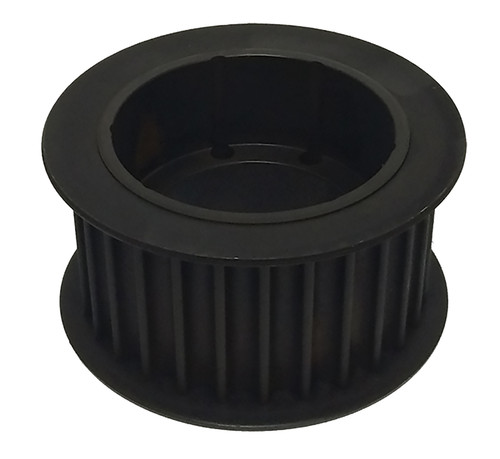

F38-14M55-SF, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F38-14M55-SF to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F38-14M55-SF
Teeth 38
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type AF-1
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 6.667
Outside Diameter (in) 6.557
Flange Diameter (in) 7.167
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.5
Unit System Inch
Bushing SF
P.D. (mm) 169.00
O.D. (mm) 166.50
A (in) 4.750
C (in) 2.440
D (in) 1.250
E (in) 0.75
F (in) 2.75
M (in) 0.75
MOQ 1
Weight (lb) 12.20
Part Number Cross Reference P38-14M-55, F38-14M55-SF, F38-14M55-SF
