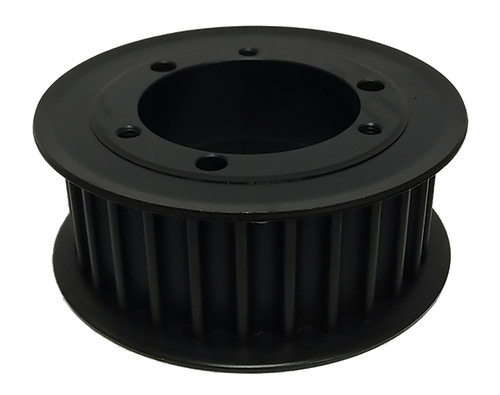

F40-14M40-SF, Timing Pulley

F40-14M40-SF - Cast Iron Powerhouse®HTD® Pulleys

Product Details for F40-14M40-SF

Comparable to: F40-14M40-SF, F40-14MGT-40-

F40-14M40-SF, Timing Pulley, Cast Iron, Black Oxide,

Learn more about F40-14M40-SF Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number F40-14M40-SF
Teeth 40
Tooth Style HTD 14mm
For Belt Width (mm) 40.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SF
Pitch Diameter (in) 7.018
Outside Diameter (in) 6.909
Flange Diameter (in) 7.500
Face Width (in) 2.125
Overall Length (in) 2.125
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
Max. Bore (in) 2.9375
Weight (lb) 7.81
Part Number Cross Reference F40-14M40-SF, F40-14MGT-40-
