F40-14M55-SF, Timing Pulley

F40-14M55-SF - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys

F40-14M55-SF

F40-14M55-SF - Ductile Iron or Cast Iron Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

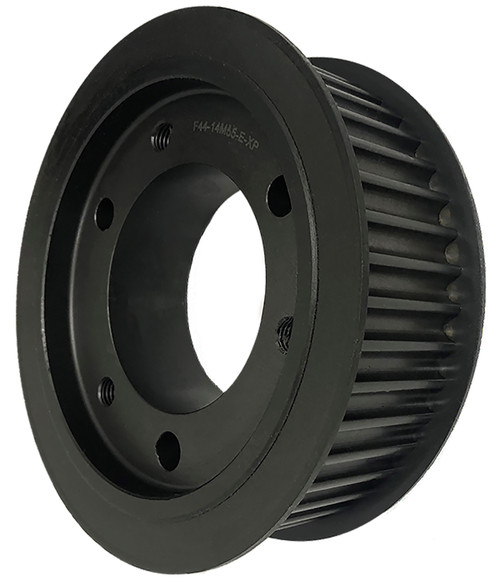

F40-14M55-SF, Timing Pulley, Ductile Iron or Cast Iron, Black Oxide

B&B Manufacturing carries F40-14M55-SF to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number F40-14M55-SF
Teeth 40
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type AF-1
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 7.018
Outside Diameter (in) 6.908
Flange Diameter (in) 7.518
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.5
Unit System Inch
Bushing SF
P.D. (mm) 178.00
O.D. (mm) 175.50
A (in) 5.060
C (in) 2.440
D (in) 1.250
E (in) 0.75
F (in) 2.75
M (in) 0.75
MOQ 1
Weight (lb) 14.80
Part Number Cross Reference P40-14M-55, F40-14M55-SF, F40-14M55-SF
