Fx65mm, QD Bushing

FX65MM

Product Details for Fx65mm

Comparable to: F.65, FX65MM BUSHING, 20181239, F x 65mm, F-65, F-65MM

Click to Enlarge

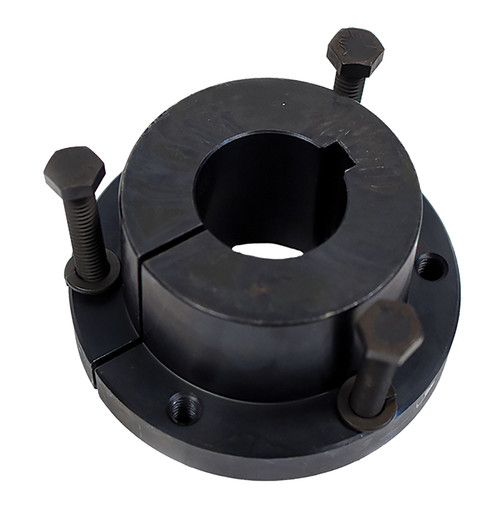

Fx65mm, QD Bushing, C45 Steel, Black Oxide,

Learn more about FX65MM QD Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number Fx65mm
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 65 mm Finished Bore
Bore (mm) 65.00
Min. Bore (in) 1.000
Unit System Metric
Bushing F
A (in) 0.813
B (in) 4.438
D (in) 6.625
E (in) 2.813
F (in) 2.5
L (in) 3.625
Torque Capacity (lb/in) 40,000
Bolt Circle (in) 3.875
Number & Screw Size 3 - (9/16-12 x 3-5/8)
MOQ 1
Weight (lb) 15.32
Part Number Cross Reference F.65, FX65MM BUSHING, 20181239, F x 65mm, F-65, F-65MM
Cap Screw Quantity 3
