Fx75mm, QD Bushing

FX75MM

Product Details for Fx75mm

Comparable to: F.75, FX75MM BUSHING, 20181241, F x 75mm, F-75, F-75MM

Click to Enlarge

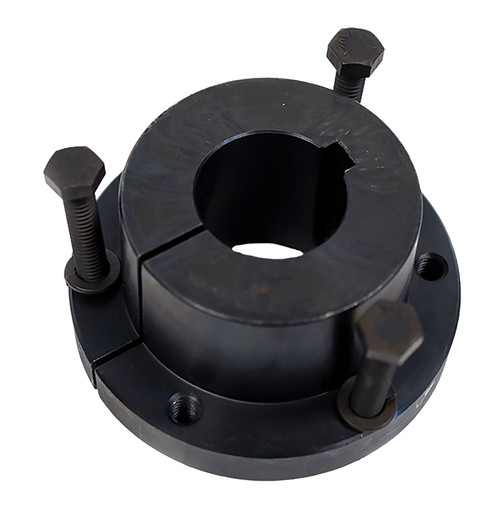

Fx75mm, QD Bushing, C45 Steel, Black Oxide,

Learn more about FX75MM QD Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number Fx75mm
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 75 mm Finished Bore
Bore (mm) 75.00
Min. Bore (in) 1.000
Unit System Metric
Bushing F
A (in) 0.813
B (in) 4.438
D (in) 6.625
E (in) 2.813
F (in) 2.5
L (in) 3.625
Torque Capacity (lb/in) 40,000
Bolt Circle (in) 3.875
Number & Screw Size 3 - (9/16-12 x 3-5/8)
MOQ 1
Weight (lb) 13.50
Part Number Cross Reference F.75, FX75MM BUSHING, 20181241, F x 75mm, F-75, F-75MM
Cap Screw Quantity 3
