Fx85mm, QD Bushing

FX85MM

Product Details for Fx85mm

Comparable to: F.85, FX85MM BUSHING, 20181243, F x 85mm, Fx-5, F-85MM

Click to Enlarge

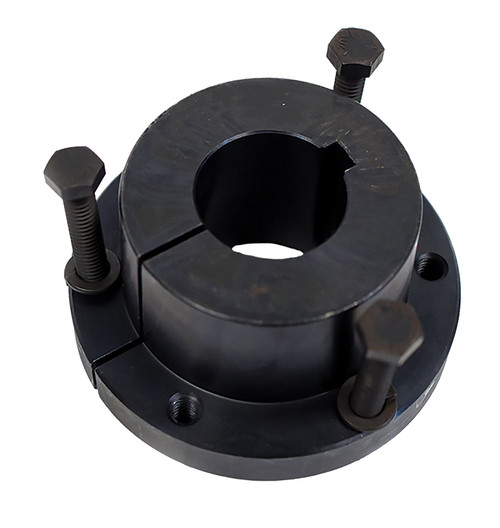

Fx85mm, QD Bushing, C45 Steel, Black Oxide,

Learn more about FX85MM QD Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number Fx85mm
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 85 mm Finished Bore
Bore (mm) 85.00
Min. Bore (in) 1.000
Unit System Metric
Bushing F
A (in) 0.813
B (in) 4.438
D (in) 6.625
E (in) 2.813
F (in) 2.5
L (in) 3.625
Torque Capacity (lb/in) 40,000
Bolt Circle (in) 3.875
Number & Screw Size 3 - (9/16-12 x 3-5/8)
MOQ 1
Weight (lb) 15.32
Part Number Cross Reference F.85, FX85MM BUSHING, 20181243, F x 85mm, Fx-5, F-85MM
Cap Screw Quantity 3
