Gx1, Split Taper Bushing

Gx1

Product Details for Gx1

Comparable to: G.1, G-1, 36883965

Click to Enlarge

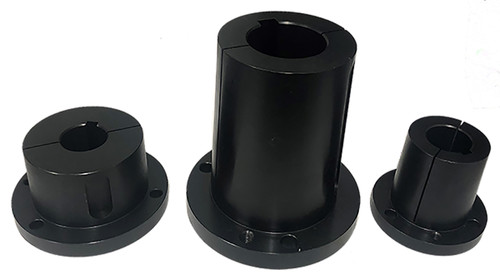

Gx1, Split Taper Bushing, C45 Steel, Black Oxide,

Learn more about Gx1 Split Taper Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number Gx1
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 1 Inch Finished Bore
Min. Bore (in) 0.375
Unit System Inch
Bushing G
D 1.172
d 1.133
H (in) 2.000
L (in) 1
T (in) 0.750
U (in) 0.250
V (in) 1.563
X (in) 0.625
Y (in) 0.188
Torque Capacity (lb/in) 95
Number & Screw Size 2 - (1/4 X 5/8)
MOQ 1
Weight (lb) 0.50
Part Number Cross Reference G.1, G-1, 36883965
Cap Screw Quantity 2
