Hx17mm, Split Taper Bushing

HX17MM

Product Details for Hx17mm

Comparable to: H17, QT x 17mmkw, QT17MM, H-17, 121146

Click to Enlarge

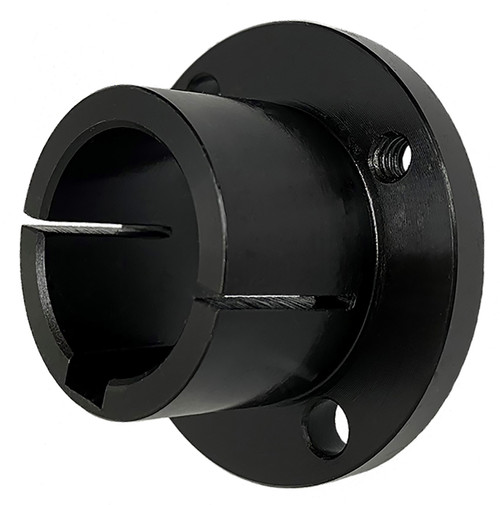

Hx17mm, Split Taper Bushing, C45 Steel, Black Oxide,

Learn more about HX17MM Split Taper Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number Hx17mm
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 17 mm Finished Bore
Bore (mm) 17.00
Min. Bore (in) 0.375
Unit System Metric
Bushing H
B (in) 1.625
D (in) 2.500
E (in) 1
F (in) 0.875
L (in) 1.25
Torque Capacity (lb/in) 95
Number & Screw Size 2 - (1/4 x 3/4)
MOQ 1
Weight (lb) 0.80
Part Number Cross Reference H17, QT x 17mmkw, QT17MM, H-17, 121146
Cap Screw Quantity 2
