Hx38mm, Split Taper Bushing

HX38MM

Product Details for Hx38mm

Comparable to: H.38, QTX38MM BUSHING, 20181515, QT x 38mmkw, QT38MM, H-38, QT-38MM, N/A

Click to Enlarge

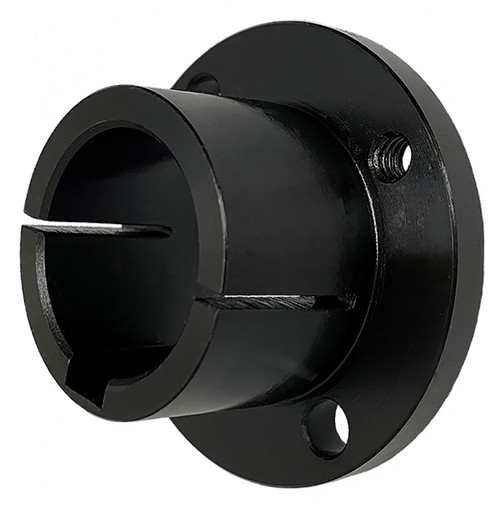

Hx38mm, Split Taper Bushing, C45 Steel, Black Oxide,

Learn more about HX38MM Split Taper Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number Hx38mm
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 38 mm Finished Bore
Bore (mm) 38.00
Min. Bore (in) 0.375
Unit System Metric
Bushing H
B (in) 1.625
D (in) 2.500
E (in) 1
F (in) 0.875
L (in) 1.25
Torque Capacity (lb/in) 95
Number & Screw Size 2 - (1/4 x 3/4)
MOQ 1
Weight (lb) 0.80
Part Number Cross Reference H.38, QTX38MM BUSHING, 20181515, QT x 38mmkw, QT38MM, H-38, QT-38MM, N/A
Cap Screw Quantity 2
