JAx12mm, QD Bushing

JAx12MM

JAx12mm

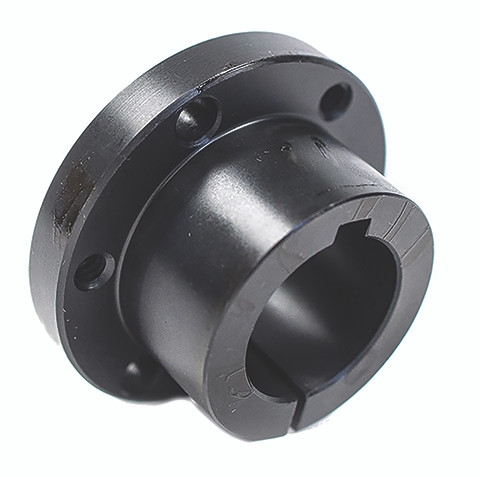

JAx12mm, QD Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries JAx12mm Bushings in a large variety of bore sizes from stock.

Specifications

Product Number JAx12mm
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore Description 12 mm Finished Bore
Bore (mm) 12.00
Min. Bore (in) 0.5
Unit System Metric
Bushing JA
A (in) 0.313
B (in) 1.375
D (in) 2.000
E (in) 0.688
F (in) 0.588
L (in) 1
Torque Capacity (lb/in) 1,750
Bolt Circle (in) 1.660
Number & Screw Size 3 - (10-24 x 1)
MOQ 1
Weight (lb) 0.50
Part Number Cross Reference JA.12, JA 12 mm, JA x 12mmkw, JA-12, JAx12mm, JAx12mm
Cap Screw Quantity 3

Related Products

Comparable to: JA.12, JA 12 mm, JA x 12mmkw, JA-12, JAx12mm, JAx12mm

Documentation

Download Catalog
Bushing Installation Guide
For custom parts click here
REACH Certification
RoHS Certification
