JAx19mm, QD Bushing

JAx19MM

Product Details for JAx19mm

Comparable to: JA.19, JAX19MM BUSHING, 20181312, JA x 19mmkw, JA-19, JA-19MM

Click to Enlarge

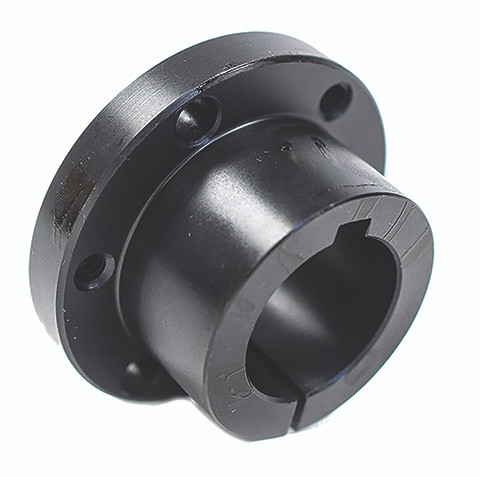

JAx19mm, QD Bushing, C45 Steel, Black Oxide,

Learn more about JAX19MM QD Bushings and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number JAx19mm
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 19 mm Finished Bore
Bore (mm) 19.00
Min. Bore (in) 0.500
Unit System Metric
Bushing JA
Max. Bore (in) 1.250
A (in) 0.313
B (in) 1.375
D (in) 2.000
E (in) 0.688
F (in) 0.588
L (in) 1
Torque Capacity (lb/in) 1,750
Bolt Circle (in) 1.660
Number & Screw Size 3 - (10-24 x 1)
MOQ 1
Weight (lb) 0.42
Part Number Cross Reference JA.19, JAX19MM BUSHING, 20181312, JA x 19mmkw, JA-19, JA-19MM
Cap Screw Quantity 3
