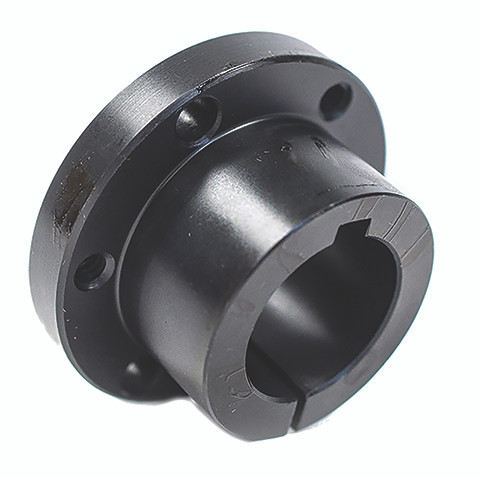

JAx20mm, QD Bushing

JAx20mm

JAx20mm, QD Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries JAx20mm Bushings in a large variety of bore sizes from stock.

Product Number	JAx20mm
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore Description	20 mm Finished Bore
Bore (mm)	20.00
Min. Bore (in)	0.5
Unit System	Metric
Bushing	JA
A (in)	0.313
B (in)	1.375
D (in)	2.000
E (in)	0.688
F (in)	0.588
L (in)	1
Torque Capacity (lb/in)	1,750
Bolt Circle (in)	1.660
Number & Screw Size	3 - (10-24 x 1)
MOQ	1
Weight (lb)	0.43
Part Number Cross Reference	JA.20, JA 20 mm, JAX20MM BUSHING, 20181313, JA X 20MM-KW BUSHING, JA20MM, JA-20, JAX20MM, JA-20MM, JAx20mm, 120329, JAx20mm
Cap Screw Quantity	3
