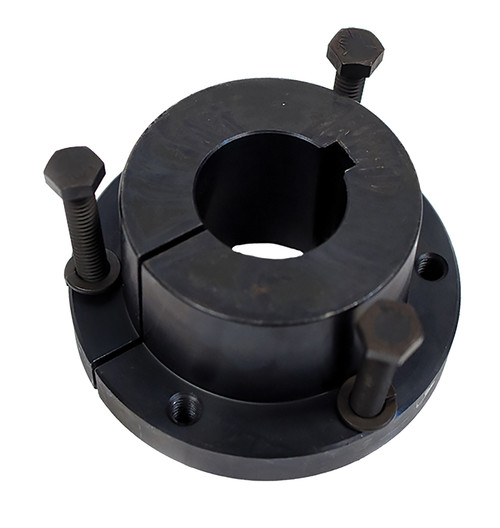

Jx2, QD Bushing

Jx2, J-2, 20181252

Jx2

Jx2, QD Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries Jx2 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number Jx2
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 2.000
Bore Description 2 Inch Finished Bore
Min. Bore (in) 1.5
Unit System Inch
Bushing J
A (in) 1.000
B (in) 5.148
D (in) 7.250
E (in) 3.5
F (in) 3.188
L (in) 4.5
Torque Capacity (lb/in) 55,000
Bolt Circle (in) 6.250
Number & Screw Size 3 - (5/8-11 x 4-1/2)
MOQ 1
Weight (lb) 21.00
Part Number Cross Reference J 2., J.2, J 2, J-2, 20181252, J X 2-KW BUSHING, J2, J-2, JX2, J-2, Jx2, 120606, Jx2
Cap Screw Quantity 3

Related Products

Comparable to: J 2., J.2, J 2, J-2, 20181252, J X 2-KW BUSHING, J2, J-2, JX2, J-2, Jx2, 120606, Jx2
