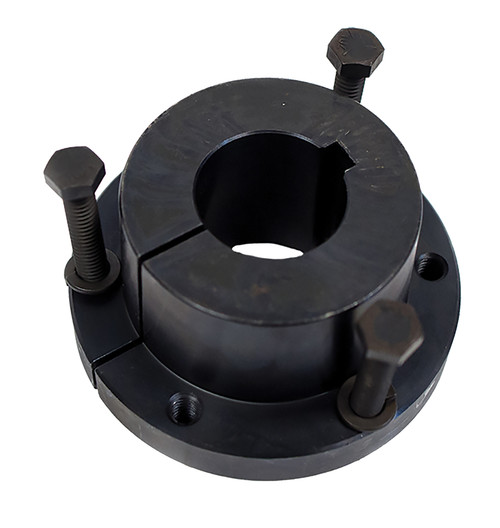

Jx60mm, QD Bushing

Jx60mm

Jx60mm, QD Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries Jx60mm Bushings in a large variety of bore sizes from stock.

Product Number	Jx60mm
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore Description	60 mm Finished Bore
Bore (mm)	60.00
Min. Bore (in)	1.5
Unit System	Metric
Bushing	J
A (in)	1.000
B (in)	5.148
D (in)	7.250
E (in)	3.5
F (in)	3.188
L (in)	4.5
Torque Capacity (lb/in)	55,000
Bolt Circle (in)	6.250
Number & Screw Size	3 - (5/8-11 x 4-1/2)
MOQ	1
Weight (lb)	21.00
Part Number Cross Reference	J.60, J 60 mm, JX60MM BUSHING, 20181327, J X 60MM-KW BUSHING, J60MM, J-60, JX60MM, J-60MM, Jx60mm, 120159, Jx60mm
Cap Screw Quantity	3
