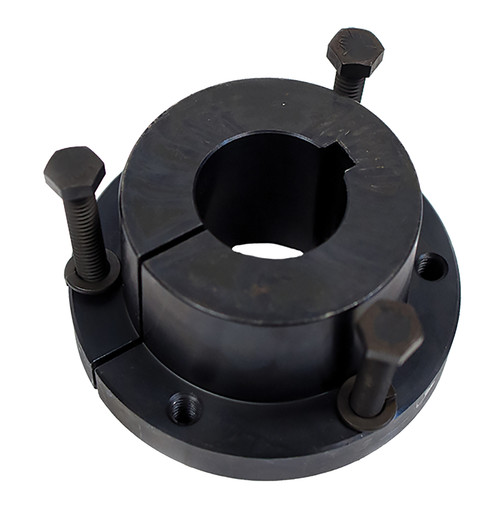

Jx75mm, QD Bushing

Jx75mm

Jx75mm, QD Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries Jx75mm Bushings in a large variety of bore sizes from stock.

Product Number	Jx75mm
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore Description	75 mm Finished Bore
Bore (mm)	75.00
Min. Bore (in)	1.5
Unit System	Metric
Bushing	J
A (in)	1.000
B (in)	5.148
D (in)	7.250
E (in)	3.5
F (in)	3.188
L (in)	4.5
Torque Capacity (lb/in)	55,000
Bolt Circle (in)	6.250
Number & Screw Size	3 - (5/8-11 x 4-1/2)
MOQ	1
Weight (lb)	21.00
Part Number Cross Reference	J.75, J 75 mm, JX75MM BUSHING, 20181330, J X 75MM-KW BUSHING, J75MM, J-75, JX75MM, J-75MM, Jx75mm, 120162, Jx75mm
Cap Screw Quantity	3
