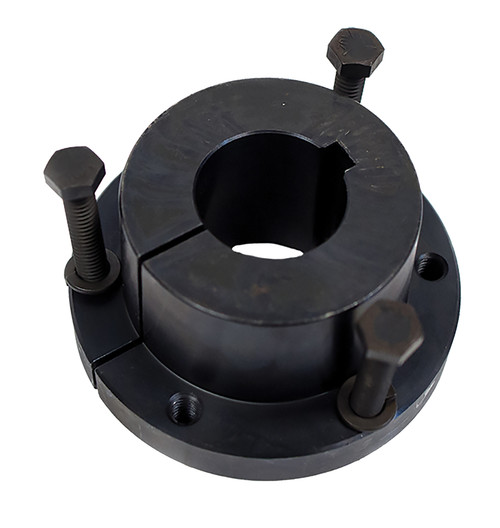

Px3, QD Bushing

Px3

Px3

Px3, QD Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries Px3 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number Px3
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 3.000
Bore Description 3 Inch Finished Bore
Min. Bore (in) 2.9375
Unit System Inch
Bushing P
A (in) 1.750
B (in) 8.250
D (in) 11.750
E (in) 7.625
F (in) 7.25
L (in) 9.375
Torque Capacity (lb/in) 250,000
Bolt Circle (in) 10.000
Number & Screw Size 4 - (1-8 x 9-1/2)
MOQ 1
Weight (lb) 125.00
Part Number Cross Reference P.3, P 3, P X 3-7/16 RSB CAST IRON BUSH, P-3, PX3, Px3, 119979, Px3
Cap Screw Quantity 4

Related Products

Comparable to: P.3, P 3, P X 3-7/16 RSB CAST IRON BUSH, P-3, PX3, Px3, 119979, Px3

Documentation

Download Catalog
Keyway Standards and Tolerances
Bushing Installation Guide
For custom parts click here
REACH Certification
RoHS Certification
