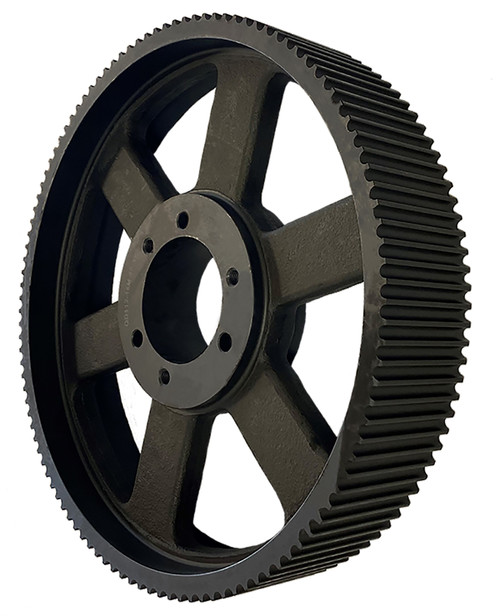

QD112-14M-85, Timing Pulley

QD112-14M-85

Click to Enlarge

QD112-14M-85, Timing Pulley, Cast Iron, Black Oxide

Learn more about QD112-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD112-14M-85
Teeth	112
Tooth Style	HTD14mm
For Belt Width (mm)	85.00
Type	D-3
Material	Cast Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	19.650
Outside Diameter (in)	19.540
Face Width (in)	4.000
Overall Length (in)	4.000
Min. Bore (in)	1
Unit System	Metric
Bushing	F
P.D. (mm)	499.00
O.D. (mm)	496.30
MOQ	1
Weight (lb)	89.00
Part Number Cross Reference	14M112QD85.F, P112-14M-85-F, 20182186, P112-14M-85-F HTD SPKT, P11214M85, P112-14M-85-F, P112-14M-85-F, P112-14M-85, P112-14M-85-F, QD112-14M-85, 110847, QD112-14M-85
