QD18L075, Timing Pulley

QD18L075 - Steel Imperial Pitch Pulleys

QD18L075

Click to Enlarge

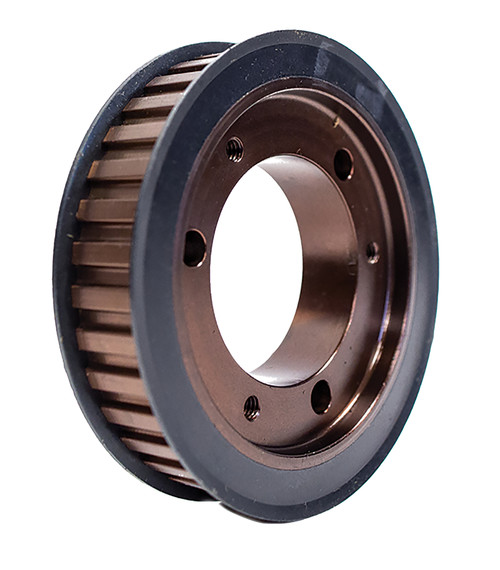

QD18L075, Timing Pulley, Steel, Black Oxide,

Learn more about QD18L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD18L075
Teeth 18
Tooth Style L
For Belt Width (in) 0.7500
Type E1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) JA
Pitch Diameter (in) 2.149
Outside Diameter (in) 2.119
Flange Diameter (in) 2.375
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing JA
P.D. (mm) 55.00
O.D. (mm) 53.80
MOQ 1
Weight (lb) 0.56
Part Number Cross Reference 18L075JA, 18L075.JA, 18L075JA, 18L075-JA, 20181918, 18L075, 18L075QD, 18L075-JA, P18L075 JA, Q18L075, QD18L075
