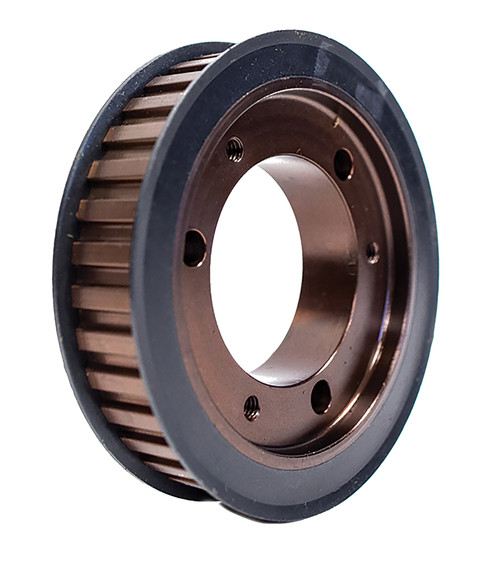

QD18L100, Timing Pulley

QD18L100 - Steel Imperial Pitch Pulleys

QD18L100

QD18L100 - Steel Imperial Pitch Pulleys Line Drawing

Click to Enlarge

QD18L100, Timing Pulley, Steel, Black Oxide

Learn more about QD18L100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD18L100
Teeth 18
Tooth Style L
For Belt Width (in) 1.0000
Type E1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for JA Bushing
Pitch Diameter (in) 2.149
Outside Diameter (in) 2.119
Flange Diameter (in) 2.375
Face Width (in) 1.250
Overall Length (in) 1.250
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.070
Unit System Inch
Bushing JA
P.D. (mm) 55.00
O.D. (mm) 53.80
MOQ 1
Weight (lb) 0.70
Part Number Cross Reference  18L100JA, 18L100.JA, 18L100JA, 18L100-JA, 20181919, 18L100, 18L100QD, 18L100-JA, P18L100 JA, Q18L100, QD18L100
