QD20XH200, Timing Pulley

QD20XH200 - Cast Iron Imperial Pitch Pulleys

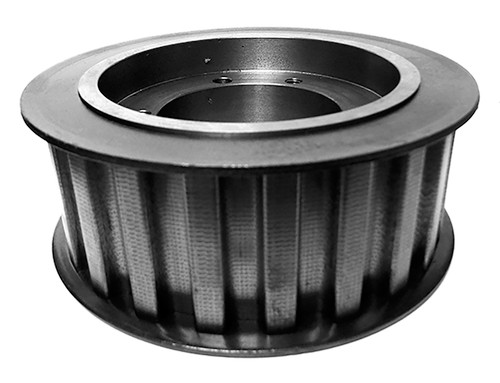

QD20XH200

Click to Enlarge

QD20XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD20XH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD20XH200
Teeth 20
Tooth Style XH
For Belt Width (in) 2.0000
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 5.570
Outside Diameter (in) 5.460
Flange Diameter (in) 6.125
Face Width (in) 2.563
Overall Length (in) 2.781
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
P.D. (mm) 142.00
O.D. (mm) 138.70
MOQ 1
Weight (lb) 8.26
Part Number Cross Reference 20H200SH, 20XH200SK, 20XH200-SK, 20181947, 20XH200, 20XH200QD, 20XH200-SK, P20XH200, Q20XH200, QD20XH200
