QD20XXH200, Timing Pulley

QD20XXH200 - Cast Iron Imperial Pitch Pulleys

QD20XXH200

Click to Enlarge

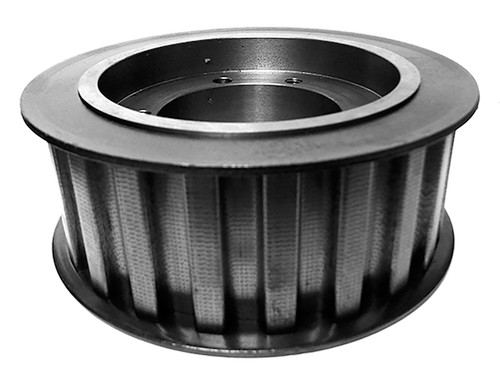

QD20XXH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD20XXH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD20XXH200
Teeth 20
Tooth Style XXH
For Belt Width (in) 2.0000
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 7.958
Outside Diameter (in) 7.838
Flange Diameter (in) 8.688
Face Width (in) 2.563
Overall Length (in) 2.563
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
P.D. (mm) 202.00
O.D. (mm) 199.10
MOQ 1
Weight (lb) 16.00
Part Number Cross Reference 20XXH200SK, 20XXH200-SK, 20181951, 20XXH200, 20XXH200-SK, P20XXH200, Q20XXH200, QD20XXH200
