QD20XXH400, Timing Pulley

QD20XXH400

Click to Enlarge

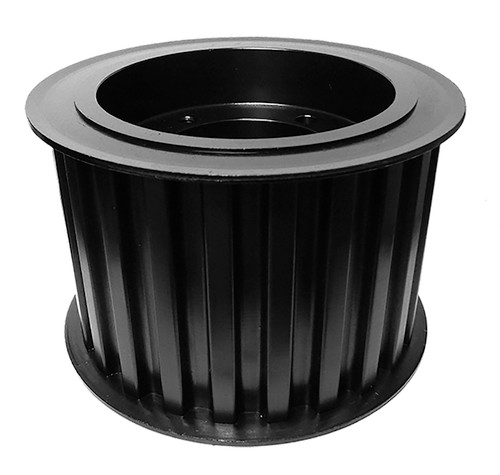

QD20XXH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD20XXH400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD20XXH400
Teeth	20
Tooth Style	XXH
For Belt Width (in)	4.0000
Type	A1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	7.958
Outside Diameter (in)	7.838
Flange Diameter (in)	8.688
Face Width (in)	2.625
Overall Length (in)	3.156
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
P.D. (mm)	202.00
O.D. (mm)	199.10
MOQ	1
Weight (lb)	30.00
Part Number Cross Reference	20XXH400SF, 20XXH400SF, 20XXH400-SF, 20181953, 20XXH400, 24XXH500QD, 20XXH400-SF, P20XXH400 SF, 20XXH400SF, Q20XXH400, QD20XXH400, QD20XXH400
