QD216-14M-55, Timing Pulley

QD216-14M-55

Click to Enlarge

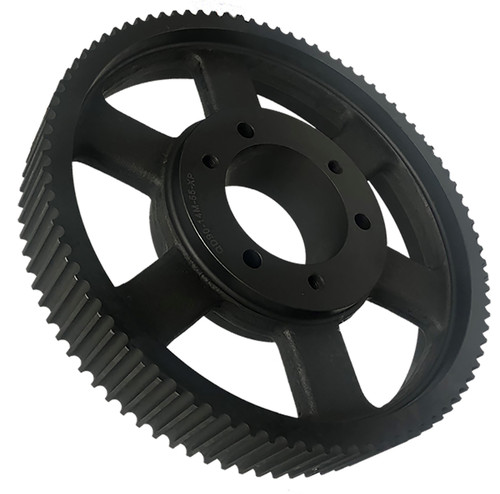

QD216-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD216-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD216-14M-55
Teeth	216
Tooth Style	HTD14mm
For Belt Width (mm)	55.00
Type	D-3
Material	Cast Iron
Finish	Black Oxide
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	37.896
Outside Diameter (in)	37.786
Face Width (in)	2.750
Overall Length (in)	2.750
Min. Bore (in)	1
Unit System	Metric
Bushing	F
P.D. (mm)	963.00
O.D. (mm)	959.80
MOQ	1
Weight (lb)	205.00
Part Number Cross Reference	P216-14M-55-F, 20182235, P216-14M-55-F HTD SPKT, P21614M55, P216-14M-55-F, P216-14M-55-F, P216-14M-55, P216-14M-55-F, QD216-14M-55, 110827, QD216-14M-55
