QD22L075, Timing Pulley

QD22L075 - Steel Imperial Pitch Pulleys

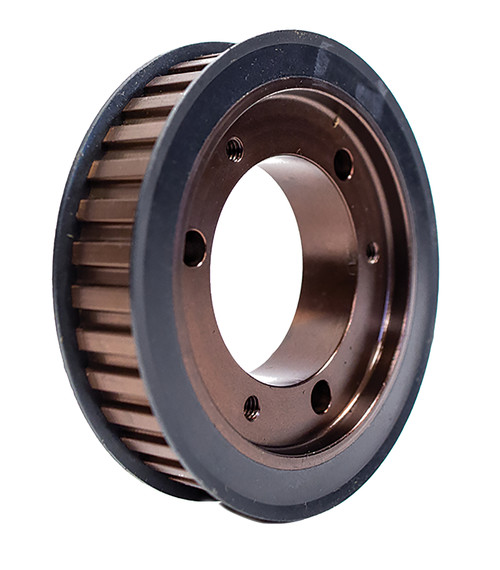

QD22L075

Click to Enlarge

QD22L075, Timing Pulley, Steel, Black Oxide,

Learn more about QD22L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD22L075
Teeth 22
Tooth Style L
For Belt Width (in) 0.7500
Type E1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) JA
Pitch Diameter (in) 2.626
Outside Diameter (in) 2.596
Flange Diameter (in) 2.875
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing JA
P.D. (mm) 67.00
O.D. (mm) 65.90
MOQ 1
Weight (lb) 0.87
Part Number Cross Reference  22L075JA, 22L075.JA, 22L075JA, 22L075-JA, 20181969, 22L075, 22L075QD, 22L075-JA, P22L075 JA, Q22L075, QD22L075
