QD22XH400, Timing Pulley

QD22XH400 - Cast Iron Imperial Pitch Pulleys

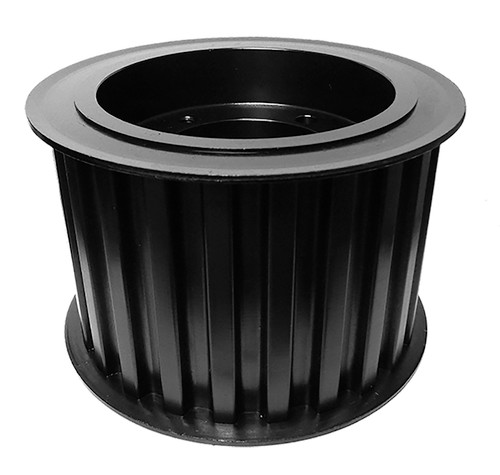

QD22XH400

Click to Enlarge

QD22XH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD22XH400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD22XH400
Teeth 22
Tooth Style XH
For Belt Width (in) 4.0000
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SK
Pitch Diameter (in) 6.127
Outside Diameter (in) 6.017
Flange Diameter (in) 6.688
Face Width (in) 4.688
Overall Length (in) 4.969
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
P.D. (mm) 156.00
O.D. (mm) 152.80
MOQ 1
Weight (lb) 16.52
Part Number Cross Reference 22XH400SK, 22XH400SK, 22XH400-SK, 20181973, 22XH400, 22XH400QD, 22XH400-SK, P22XH400, Q22XH400, QD22XH400
