QD22XXH400, Timing Pulley

QD22XXH400

Click to Enlarge

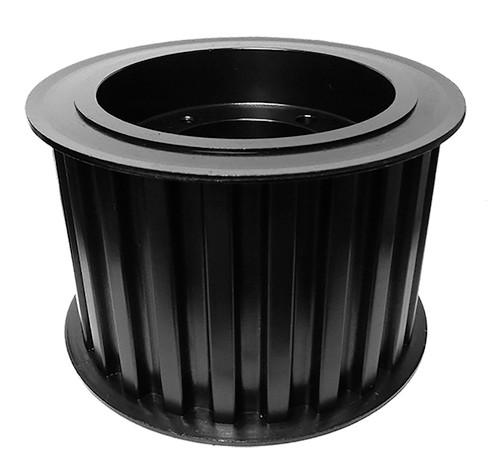

QD22XXH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD22XXH400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD22XXH400
Teeth	22
Tooth Style	XXH
For Belt Width (in)	4.0000
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	8.754
Outside Diameter (in)	8.634
Flange Diameter (in)	9.292
Face Width (in)	4.750
Overall Length (in)	4.750
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
P.D. (mm)	222.00
O.D. (mm)	219.30
MOQ	1
Weight (lb)	32.66
Part Number Cross Reference	22XXH400E, 22XXH400E, 22XXH400-E, 20181977, 22XXH400, 26XXH500QD, 22XXH400-E, P22XXH400 E, 22XXH400E, Q22XXH400, QD22XXH400, QD22XXH400
