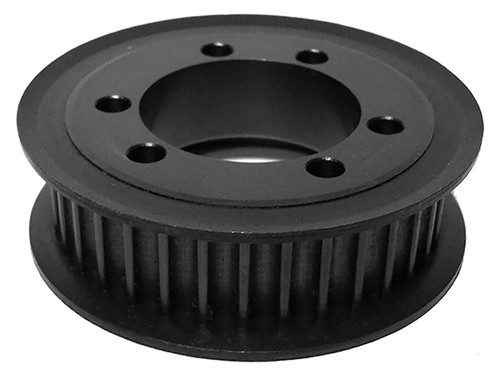

QD24-8M-20, Timing Pulley

QD24-8M-20

Click to Enlarge

QD24-8M-20, Timing Pulley, Steel, Black Oxide,

Learn more about QD24-8M-20 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD24-8M-20
Teeth	24
Tooth Style	HTD8mm
For Belt Width (mm)	20.00
Type	E1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for JA Bushing
Pitch Diameter (in)	2.406
Outside Diameter (in)	2.354
Flange Diameter (in)	2.756
Face Width (in)	1.125
Overall Length (in)	1.125
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.875
Unit System	Metric
Bushing	JA
P.D. (mm)	61.00
O.D. (mm)	59.80
MOQ	1
Weight (lb)	0.87
Part Number Cross Reference	P248M20-JA, B248M20JA, P24-8M-20-JA, 20182244, P24-8M-20-JA HTD SPKT, P248M20, P24-8M-20-JA, P24-8M-20-JA, P24-8M-20, P248M20JA, 3PEC1, P24-8M-20-JA, QD24-8M-20, 110701, QD24-8M-20
