QD24-8M-30, Timing Pulley

QD24-8M-30 - Steel Powerhouse®HTD® Pulleys

Product Details for QD24-8M-30

Comparable to: P24-8M-30-JA, 20182245, P248M30

Click to Enlarge

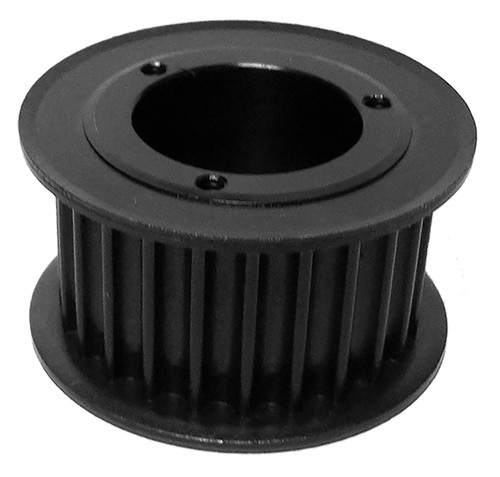

QD24-8M-30, Timing Pulley, Steel, Black Oxide,

B&B Manufacturing carries QD24-8M-30 in various pitches to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number QD24-8M-30
Teeth 24
Tooth Style HTD 8mm
For Belt Width (mm) 30
Type E1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) JA
Pitch Diameter (in) 2.406
Outside Diameter (in) 2.352
Flange Diameter (in) 2.756
Face Width (in) 1.500
Min. Bore (in) 0.500
Unit System Inch
Bushing JA
Belt Width (mm) 30.00
MOQ 1
Weight (lb) 1.12
Part Number Cross Reference P24-8M-30-JA, 20182245, P248M30
