QD24L050, Timing Pulley

QD24L050 - Steel Imperial Pitch Pulleys

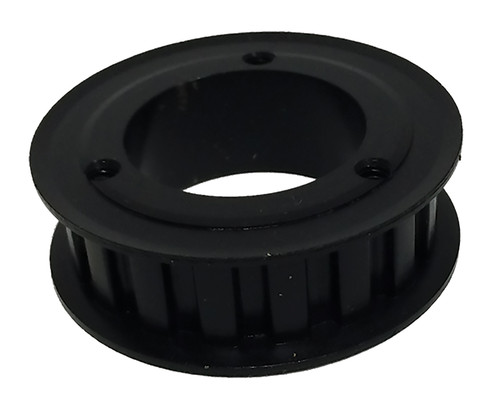

QD24L050

Click to Enlarge

QD24L050, Timing Pulley, Steel, Black Oxide,

Learn more about QD24L050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD24L050
Teeth 24
Tooth Style L
For Belt Width (in) 0.5000
Type E1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SH
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.835
Flange Diameter (in) 3.094
Face Width (in) 0.750
Overall Length (in) 0.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing SH
P.D. (mm) 73.00
O.D. (mm) 72.00
MOQ 1
Weight (lb) 0.64
Part Number Cross Reference 24L050SH, 24L050.SH, 24L050SH, 24L050-SH, 20181984, 24L050, 24L050QD, 24L050-SH, P24L050 SH, Q24L050, QD24L050
