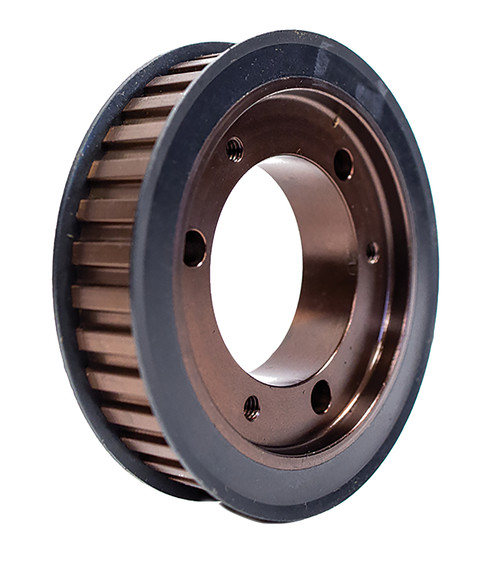

QD24L075, Timing Pulley

QD24L075 - Steel Imperial Pitch Pulleys

QD24L075

Click to Enlarge

QD24L075, Timing Pulley, Steel, Black Oxide,

Learn more about QD24L075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD24L075
Teeth 24
Tooth Style L
For Belt Width (in) 0.7500
Type E1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) Bored for SH Bushing
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.835
Flange Diameter (in) 3.094
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.820
Unit System Inch
Bushing SH
P.D. (mm) 73.00
O.D. (mm) 72.00
MOQ 1
Weight (lb) 0.84
Part Number Cross Reference 24L075SH, 24L075.SH, 24L075SH, 24L075-SH, 20181985, 24L075, 24L075QD, 24L075-SH, P24L075 SH, Q24L075, QD24L075
