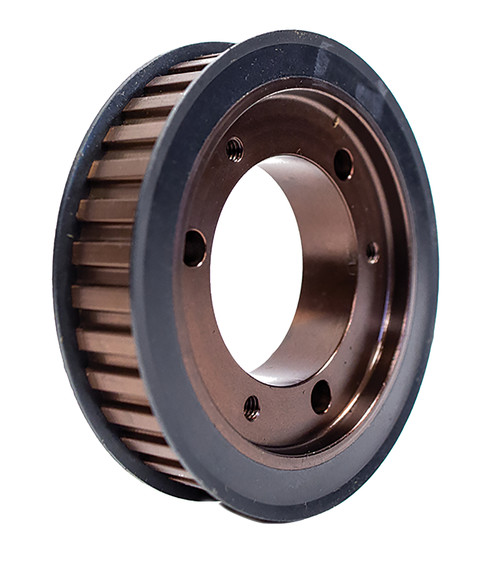

QD24L100, Timing Pulley

QD24L100 - Steel Imperial Pitch Pulleys

QD24L100

QD24L100 - Steel Imperial Pitch Pulleys Line Drawing

Click to Enlarge

QD24L100, Timing Pulley, Steel, Black Oxide,

Learn more about QD24L100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD24L100
Teeth 24
Tooth Style L
For Belt Width (in) 1.0000
Type E1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SH Bushing
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.835
Flange Diameter (in) 3.094
Face Width (in) 1.250
Overall Length (in) 1.250
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.070
Unit System Inch
Bushing SH
P.D. (mm) 73.00
O.D. (mm) 72.00
MOQ 1
Weight (lb) 1.04
Part Number Cross Reference 24L100SH, 24L100.SH, 24L100SH, 24L100-SH, 20181986, 24L100, 24L100QD, 24L100-SH, P24L100 SH, Q24L100, QD24L100
