QD24XH200, Timing Pulley

QD24XH200 - Cast Iron Imperial Pitch Pulleys

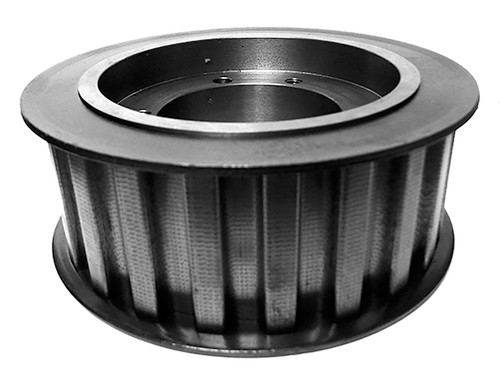

QD24XH200

Click to Enlarge

QD24XH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD24XH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD24XH200
Teeth 24
Tooth Style XH
For Belt Width (in) 2.0000
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SF
Pitch Diameter (in) 6.685
Outside Diameter (in) 6.575
Flange Diameter (in) 7.250
Face Width (in) 2.563
Overall Length (in) 2.781
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
P.D. (mm) 170.00
O.D. (mm) 167.00
MOQ 1
Weight (lb) 12.14
Part Number Cross Reference 24H200SD, 24XH200SF, 24XH200-SF, 20181987, 24XH200, 24XH200QD, 24XH200-SF, P24XH200, Q24XH200, QD24XH200
