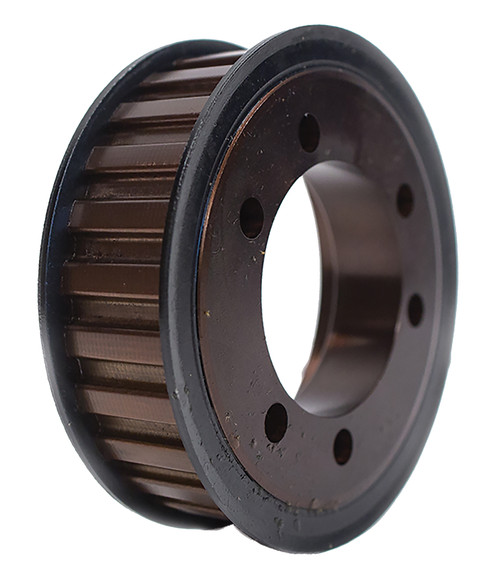

QD25H100, Timing Pulley

QD25H100

Click to Enlarge

QD25H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD25H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD25H100
Teeth	25
Tooth Style	H
For Belt Width (in)	1.0000
Type	E1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SDS Bushing
Pitch Diameter (in)	3.979
Outside Diameter (in)	3.925
Flange Diameter (in)	4.369
Face Width (in)	1.312
Overall Length (in)	1.312
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SDS
P.D. (mm)	101.00
O.D. (mm)	99.70
MOQ	1
Weight (lb)	2.15
Part Number Cross Reference	25H100SDS, 25H100.SDS, 25H100SDS, 25H100-SDS, 20181995, 25H100, 25H100QD, 25H100-SDS, P25H100 SDS, 25H100SDS, QD25H100, QD25H100
