QD26H300, Timing Pulley

QD26H300 - Cast Iron Imperial Pitch Pulleys

QD26H300

Click to Enlarge

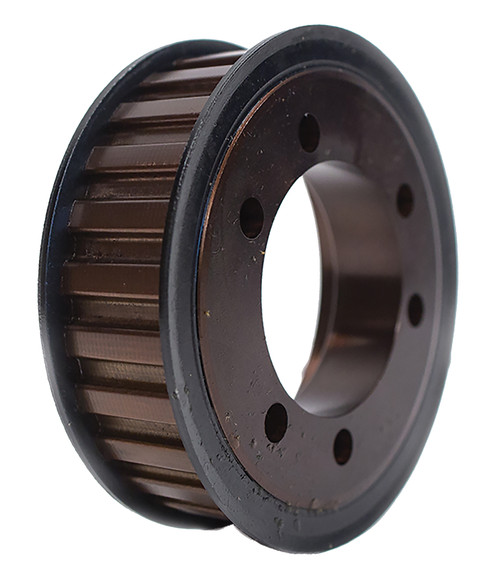

QD26H300, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD26H300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD26H300
Teeth 26
Tooth Style H
For Belt Width (in) 3.0000
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SD
Pitch Diameter (in) 4.138
Outside Diameter (in) 4.084
Flange Diameter (in) 4.369
Face Width (in) 3.375
Overall Length (in) 3.375
Min. Bore (in) 0.500
Pulley Belt Width (in) 3.125
Unit System Inch
Bushing SD
P.D. (mm) 105.00
O.D. (mm) 103.70
MOQ 1
Weight (lb) 5.12
Part Number Cross Reference 26H300SD, 26H300.SD, 26H300SD, 26H300-SD, 20181999, 26H300, 26H300QD, 26H300-SD, P26H300 SD, Q26H300, QD26H300
