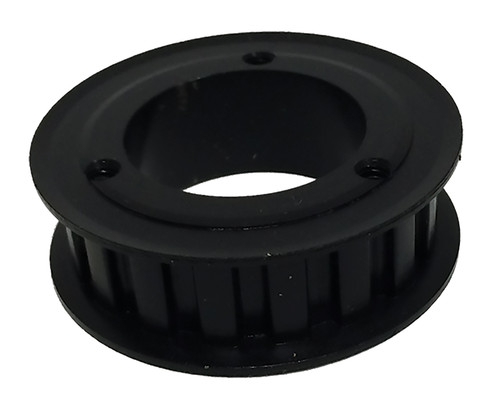

QD26L050, Timing Pulley

QD26L050 - Cast Iron Imperial Pitch Pulleys

QD26L050

Click to Enlarge

QD26L050, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD26L050 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD26L050
Teeth 26
Tooth Style L
For Belt Width (in) 0.5000
Type E1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SH
Pitch Diameter (in) 3.104
Outside Diameter (in) 3.074
Flange Diameter (in) 3.330
Face Width (in) 0.750
Overall Length (in) 0.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
Bushing SH
P.D. (mm) 79.00
O.D. (mm) 78.10
MOQ 1
Weight (lb) 0.87
Part Number Cross Reference 26L050SH, 26L050.SH, 26L050SH, 26L050-1/2, 20182000, 26L050, 26L050QD, 26L050-SH, P26L050 SH, Q26L050, QD26L050
