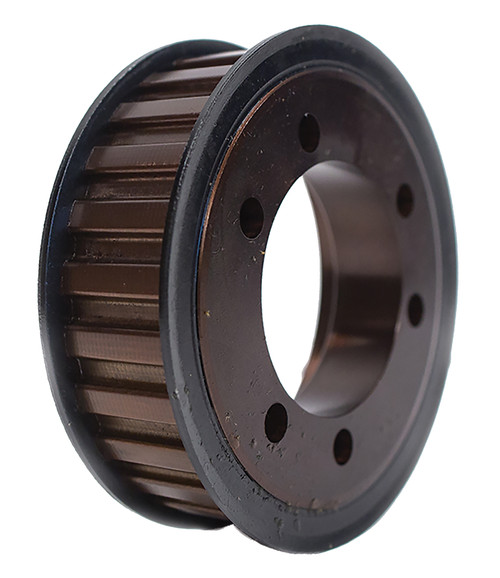

QD27H100, Timing Pulley

QD27H100 - Cast Iron Imperial Pitch Pulleys

QD27H100

Click to Enlarge

QD27H100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD27H100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD27H100
Teeth 27
Tooth Style H
For Belt Width (in) 1.0000
Type D1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 4.297
Outside Diameter (in) 4.243
Flange Diameter (in) 4.687
Face Width (in) 1.312
Overall Length (in) 1.312
Min. Bore (in) 0.500
Unit System Inch
Bushing SDS
P.D. (mm) 109.00
O.D. (mm) 107.80
MOQ 1
Weight (lb) 2.69
Part Number Cross Reference 27H100.SDS, 27H100SDS, 27H100-SDS, 20182011, 27H100, 27H100-SDS, P27H100 SDS, QD27H100
