QD28-14M-55, Timing Pulley

QD28-14M-55 - Cast Iron Powerhouse®HTD® Pulleys

QD28-14M-55

Click to Enlarge

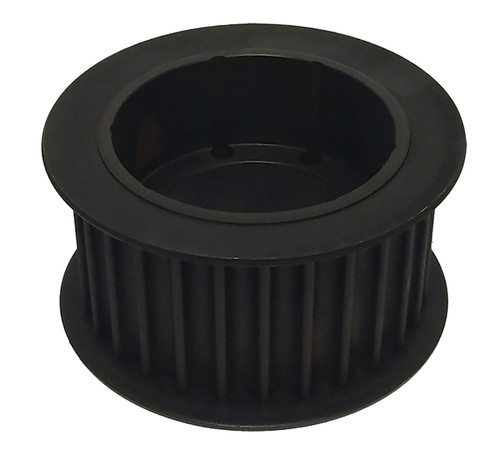

QD28-14M-55, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD28-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD28-14M-55
Teeth 28
Tooth Style HTD 14mm
For Belt Width (mm) 55
Type E1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 4.912
Outside Diameter (in) 4.802
Flange Diameter (in) 5.560
Face Width (in) 2.750
Overall Length (in) 3.375
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
P.D. (mm) 125.00
O.D. (mm) 122.00
MOQ 1
Weight (lb) 7.00
Part Number Cross Reference 14M28QD55.SK, P28-14M-55-SK, 20182253, 110805, P2814M55, P28-14M-55-SK, P28-14M-55-SK, P28-14M-55, P28-14M-55-SK, QD28-14M-55

Comparable to: 14M28QD55.SK, P28-14M-55-SK, 20182253, 110805, P2814M55, P28-14M-55-SK, P28-14M-55-SK, P28-14M-55, P28-14M-55-SK, QD28-14M-55

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
