QD28-8M-50, Timing Pulley

QD28-8M-50 - Steel Powerhouse®HTD® Pulleys

Product Details for QD28-8M-50

Comparable to: 8M28QD50.JA, 110738, P288M50, P28-8M-50-MPB, P28-8M-50, P28-8M-50-JA

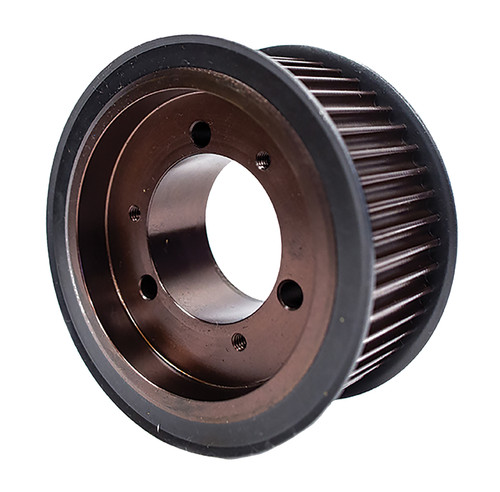

Click to Enlarge

QD28-8M-50, Timing Pulley, Steel, Black Oxide,

Learn more about QD28-8M-50 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD28-8M-50
Teeth 28
Tooth Style HTD 8mm
For Belt Width (mm) 50
Type D1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) JA
Pitch Diameter (in) 2.807
Outside Diameter (in) 2.759
Flange Diameter (in) 3.150
Face Width (in) 2.375
Overall Length (in) 2.375
Min. Bore (in) 0.500
Pulley Belt Width (in) 2.125
Unit System Inch
Bushing JA
MOQ 1
Weight (lb) 1.68
Part Number Cross Reference 8M28QD50.JA, 110738, P288M50, P28-8M-50-MPB, P28-8M-50, P28-8M-50-JA
