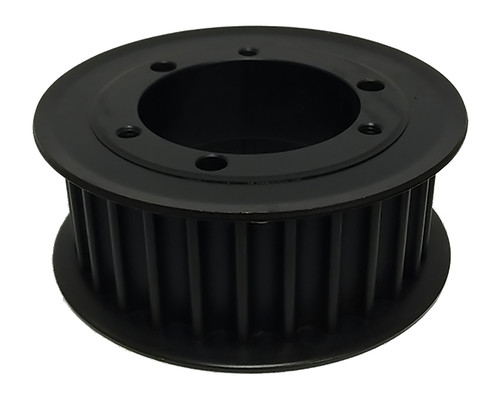

QD29-14M-40, Timing Pulley

QD29-14M-40

Click to Enlarge

QD29-14M-40, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD29-14M-40 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD29-14M-40
Teeth	29
Tooth Style	HTD14mm
For Belt Width (mm)	40.00
Type	E1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	5.088
Outside Diameter (in)	4.978
Flange Diameter (in)	5.560
Face Width (in)	2.125
Overall Length (in)	2.125
Min. Bore (in)	0.5
Unit System	Metric
Bushing	SK
P.D. (mm)	129.00
O.D. (mm)	126.40
MOQ	1
Weight (lb)	6.50
Part Number Cross Reference	14M29QD85.SK, P29-14M-40-SK, 20182260, P29-14M-40-SK HTD SPKT, P2914M40, P29-14M-40-SK, P29-14M-40-SK, P29-14M-40, P29-14M-40-SK, QD29-14M-40, 110781, QD29-14M-40
