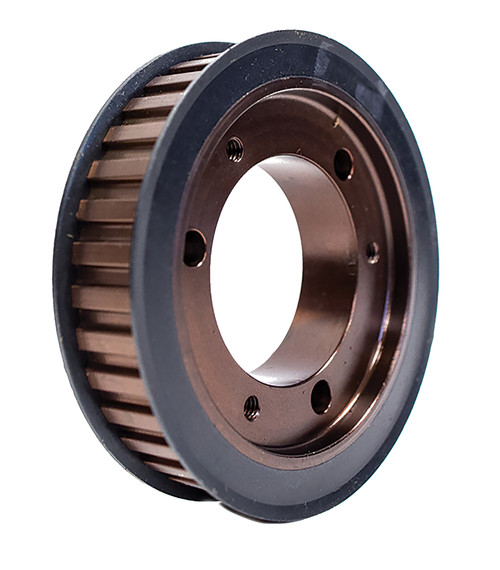

QD30L100, Timing Pulley

QD30L100 - Cast Iron Imperial Pitch Pulleys

QD30L100

Click to Enlarge

QD30L100, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD30L100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD30L100
Teeth 30
Tooth Style L
For Belt Width (in) 1.0000
Type E1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 3.581
Outside Diameter (in) 3.551
Flange Diameter (in) 3.800
Face Width (in) 1.250
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.070
Unit System Inch
Bushing SDS
P.D. (mm) 91.00
O.D. (mm) 90.20
MOQ 1
Weight (lb) 1.89
Part Number Cross Reference 30L100SDS, 30L100.SDS, 30L100SDS, 30L100-SDS, 20182031, 30L100, 30L100QD, 30L100-SDS, P30L100 SDS, Q30L100, QD30L100
