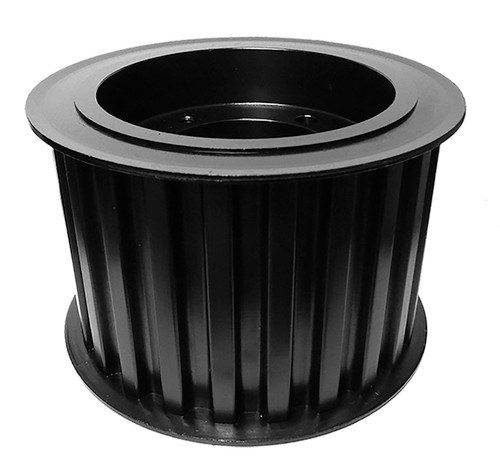

QD30XH400, Timing Pulley

QD30XH400 - Cast Iron Imperial Pitch Pulleys

QD30XH400

QD30XH400 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

QD30XH400, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD30XH400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD30XH400
Teeth 30
Tooth Style XH
For Belt Width (in) 4.0000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 8.356
Outside Diameter (in) 8.246
Flange Diameter (in) 8.875
Face Width (in) 4.688
Overall Length (in) 5.156
Min. Bore (in) 0.875
Unit System Inch
Bushing E
P.D. (mm) 212.00
O.D. (mm) 209.40
MOQ 1
Weight (lb) 30.00
Part Number Cross Reference 30XH400E, 30XH400E, 30XH400-E, 20182034, 30XH400, 30XH400QD, 30XH400-E, P30XH400 E, 30XH400E, Q30XH400, QD30XH400, QD30XH400
