QD30XXH200, Timing Pulley

QD30XXH200

Click to Enlarge

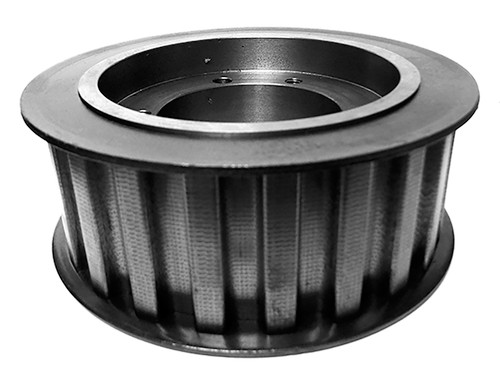

QD30XXH200, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD30XXH200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD30XXH200
Teeth	30
Tooth Style	XXH
For Belt Width (in)	2.0000
Type	D2F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	11.937
Outside Diameter (in)	11.817
Flange Diameter (in)	12.688
Face Width (in)	2.563
Overall Length (in)	2.563
Min. Bore (in)	1
Unit System	Inch
Bushing	F
P.D. (mm)	303.00
O.D. (mm)	300.10
MOQ	1
Weight (lb)	47.00
Part Number Cross Reference	30XXH200F, 30XXH200F, 30XXH200-F, 20182036, 30XXH200, 30XXH300QD, 30XXH200-F, P30XXH200 F, 30XXH200F, Q30XXH200, QD30XXH200, QD30XXH200
