QD32-14M-115, Timing Pulley

QD32-14M-115 - Cast Iron Powerhouse®HTD® Pulleys

QD32-14M-115

Click to Enlarge

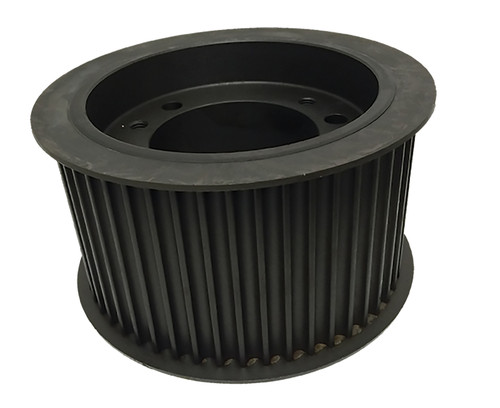

QD32-14M-115, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32-14M-115 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD32-14M-115
Teeth 32
Tooth Style HTD14mm
For Belt Width (mm) 115.00
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 5.614
Outside Diameter (in) 5.504
Flange Diameter (in) 6.130
Face Width (in) 5.250
Overall Length (in) 5.250
Min. Bore (in) 0.5
Unit System Metric
Bushing SK
P.D. (mm) 143.00
O.D. (mm) 139.80
MOQ 1
Weight (lb) 16.00
Part Number Cross Reference 14M32QD115.SK, P32-14M-115-EL, 20182273, P32-14M-115-SK HTD SPKT, P3214M115, P32-14M-115-SK, P32-14M-115-EL, P32-14M-115, P32-14M-115-SK, QD32-14M-115, 110858, QD32-14M-115

Comparable to: 14M32QD115.SK, P32-14M-115-EL, 20182273, P32-14M-115-SK HTD SPKT, P3214M115, P32-14M-115-SK, P32-14M-115-EL, P32-14M-115, P32-14M-115-SK, QD32-14M-115, 110858, QD32-14M-115
