QD32-14M-85, Timing Pulley

QD32-14M-85

Click to Enlarge

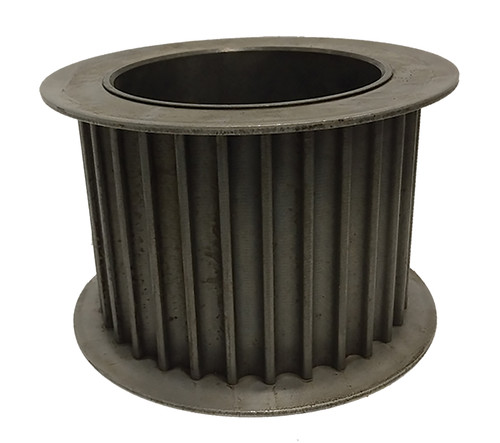

QD32-14M-85, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32-14M-85 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD32-14M-85
Teeth	32
Tooth Style	HTD14mm
For Belt Width (mm)	85.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	5.614
Outside Diameter (in)	5.504
Flange Diameter (in)	6.130
Face Width (in)	4.000
Overall Length (in)	4.000
Min. Bore (in)	0.5
Unit System	Metric
Bushing	SK
P.D. (mm)	143.00
O.D. (mm)	139.80
MOQ	1
Weight (lb)	13.00
Part Number Cross Reference	14M32QD85.SK, P32-14M-85-EL, 20182277, P32-14M-85-SK HTD SPKT, P3214M85, P32-14M-85-SK, P32-14M-85-EL, P32-14M-85, P32-14M-85-SK, QD32-14M-85, 110833, QD32-14M-85
