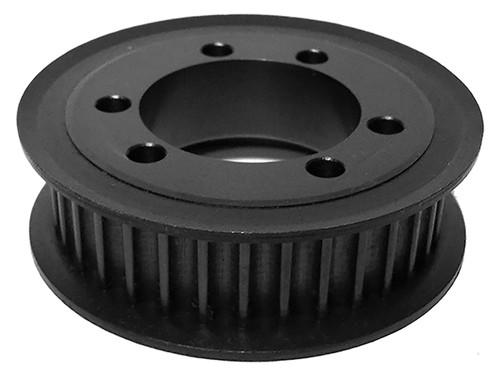

QD32-8M-20, Timing Pulley

QD32-8M-20

Click to Enlarge

QD32-8M-20, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32-8M-20 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD32-8M-20
Teeth	32
Tooth Style	HTD 8mm
For Belt Width (mm)	20.00
Type	C1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for H Bushing
Pitch Diameter (in)	3.208
Outside Diameter (in)	3.156
Flange Diameter (in)	3.543
Face Width (in)	1.125
Overall Length (in)	1.125
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.875
Unit System	Inch
Bushing	H
P.D. (mm)	82.00
O.D. (mm)	80.20
MOQ	1
Weight (lb)	1.43
Part Number Cross Reference	P32-8M-20-QT, 20182281, 110705, P328M20, P32-8M-20-HQ, P32-8M-20-QT, P32-8M-20, P32-8M-20-L, QD32-8M-20
