QD32-8M-30, Timing Pulley

QD32-8M-30 - Cast Iron Powerhouse®HTD® Pulleys

Product Details for QD32-8M-30

Comparable to: 8M32QD30.H, P32-8M-30-QT, 20182282, 110725, P328M30, P32-8M-30-HQ, P32-8M-30, P32-8M-30-L

Click to Enlarge

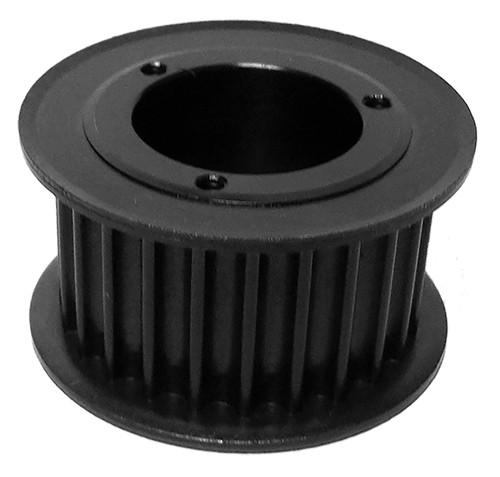

QD32-8M-30, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD32-8M-30 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD32-8M-30
Teeth 32
Tooth Style HTD 8mm
For Belt Width (mm) 30
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore (in) H
Pitch Diameter (in) 3.208
Outside Diameter (in) 3.156
Flange Diameter (in) 3.543
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.375
Pulley Belt Width (in) 1.250
Unit System Inch
Bushing H
MOQ 1
Weight (lb) 1.61
Part Number Cross Reference 8M32QD30.H, P32-8M-30-QT, 20182282, 110725, P328M30, P32-8M-30-HQ, P32-8M-30, P32-8M-30-L
